SAE MAP3439A

Original price was: $103.Current price is: $62.

O-Ring Groove Design for Metric O-Ring Seals Used in Static Axial Compression Applications Specifically for Engine and Engine Control Systems

Published by Publication Date Number of Pages
SAE 2021

SAE MAP3439A – O-Ring Groove Design for Metric O-Ring Seals Used in Static Axial Compression Applications Specifically for Engine and Engine Control Systems

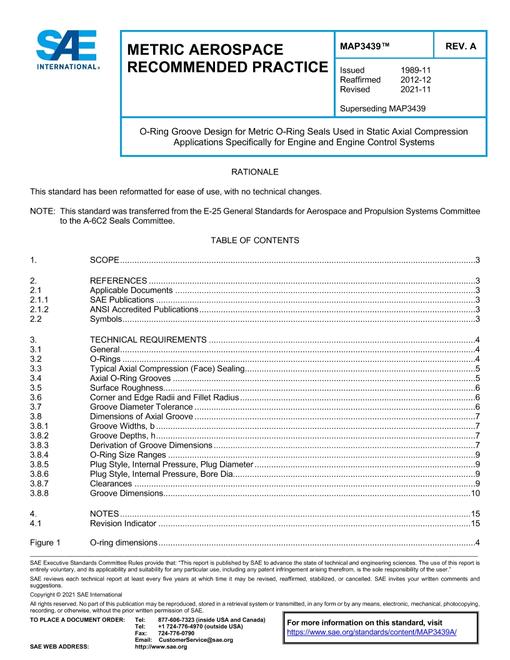

This recommended practice provides the design criteria for static elastomeric O-ring seals used specifically in engine and engine control systems. It provides axial compression (face type) groove dimensions for aerospace metric O-ring sizes specified in MA2010. The conditions considered to formulate the design criteria are also described e.g. seal squeeze and groove volume to accommodate O-ring swell.

Product Details

Published:
11/23/2021
File Size:
1 file 580 KB
