SAE MAP1572A
Original price was: $41.$25Current price is: $25.
Metric Stud Holes for Aerospace Electrical and Electronic Wire Terminating Devices
| Published by | Publication Date | Number of Pages |
| SAE | 2021 | – |

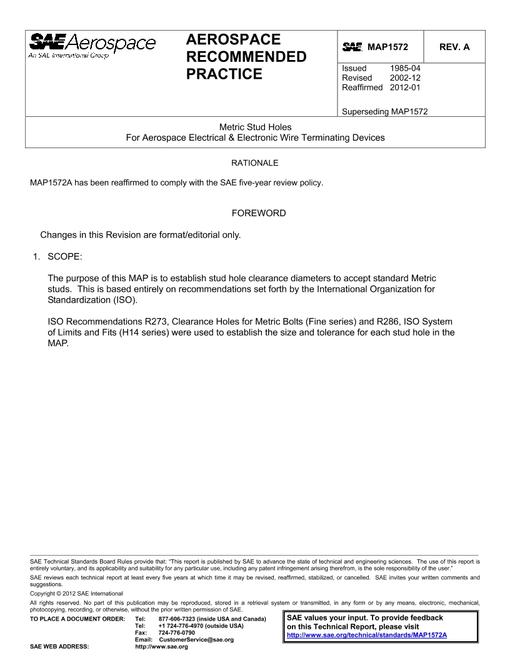

SAE MAP1572A – Metric Stud Holes for Aerospace Electrical and Electronic Wire Terminating Devices
The purpose of this MAP is to establish stud hold clearance diameters to accept standard Metric studs. This is based entirely on recommendations set forth by the International Organization for Standardization (I.S.O.). ISO Recommendations R273 Clearance Holes for Metric Bolts (Fine series) and R286 ISO System of Limits and Fits (H14 series) were used to establish the size and tolerance for each stud hold in the MAP.
Product Details
- Published:
- 12/27/2021
- File Size:
- 1 file 450 KB
- Note:
- This product is unavailable in Ukraine Russia Belarus
